SONEX
Industrial Acoustic Products

　これは吸音材です。下のスペックを見て頂ければ御分りになると思いますが、非常に優れた特性を示しています。（特に高域特性）
　タイプとしては、PanelとBaffleの2種類を扱っています。
Baffleタイプは体育館や工場などの広いところに天井から吊り下げるタイプです。Panelは読んで字のごとく反射してる壁などにパネルのように架けるタイプです。このタイプは、録音スタジオやホールなどでよく使用されている。

SONEX Panels

	SONEXclassic features a modified anechoic wedge design for cost-effecfive, yet impressive sound control. FIBER-FREE and Class 1 rafed, these 2' x 4' panels are available in 2" thickness in natural, painted colors and colortec.TM
	SONEXclassic Product Specifications Material: Open cell willtec Surface Pattern: Pronounced sculpted surface absorbs sound waves. Density: 0.7 lb./cubic ft. Tensile Strength: 8 PSI Flammability: ASTM E 84 Class 1 Flame Spread: Natural-5 Painted-10 Colortec-5 Smoke Density: Natural-45 Painted-10 Colortec-90
								Picture Click
	The data and Information shown are average values in test environments which may vary and do not constitute a guarantee of performance. Testing is recommended before actual use.
	Test data available Upon request.

　SONEX Panels

	SONEXoneｪ panels are the most popular SONEX products because they are suitable far a wide variety of applications and environments. From industrial to architectural spaces, SONEXone panels are effective and attractive noise control sclutiors. The sculptec suface deflects and disperses sound waves, allowing the open-cell willtec material to convert sound energy into quiet, kinetic energy.
	SONEXone panels are FIBER-FREE Class 1, measure 24" x 48", and are available in 2" and 3" thicknesses. Choose from natural, painted colors and colortec.TM A protective Hypalon coating is available for added surface protection and dura!bility. Hypalon repels oils, acids, and other solvents for easier cleaning.
				Picture Click

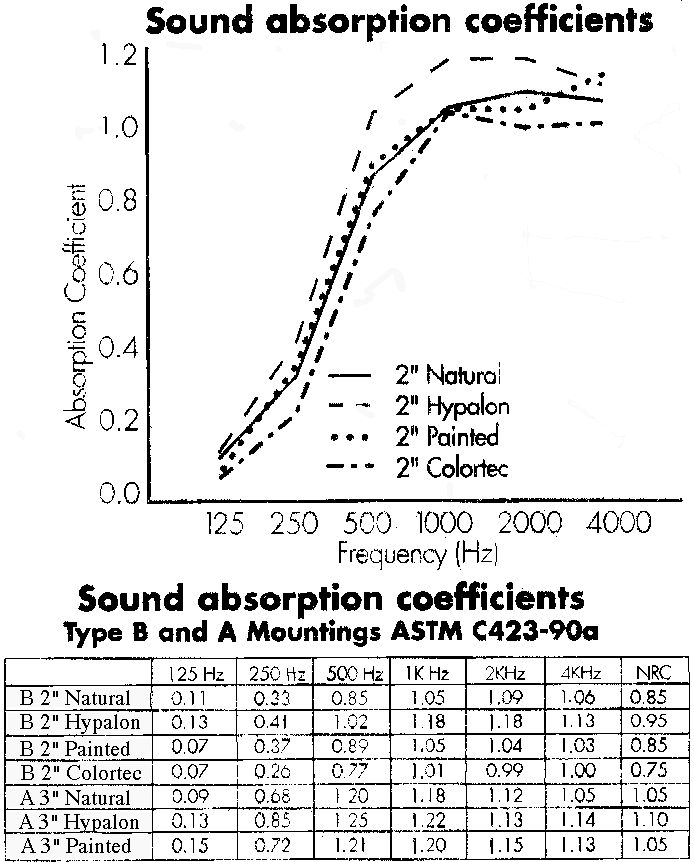

			SONEXone Product Specifications Material: Open cell willtec Surface Pattern: Sculpted surface scatters and deflects sound waves; anechoic wedges increase sound-absorbing surface area. Density: 0.7 lb./cubic ft. Tensile Strength: 8 PSI Flammability: ASTM E 84 Class 1 Flame Spread: Natural-5 Painted-10 Hypalon-25 Colortec-5 Smoke Density: Natural-45 Painted-10 Hypalon-185 Colortec-90
			The data and Information shown are average values in test environments which may vary and do not constitute a guarantee of performance. Testing is recommended before actual use.
			Test data available Upon request.

		詳しい資料が入り次第掲示します。

上記に関する問い合せ先

（株）音響総合研究所
本社:〒４００−０８４４　山梨県甲府市中町５−１ TEL0552-41-9331 FAX0552-41-9338
東京:〒181 東京都三鷹市下連雀2-14-45 TEL0422-71-4511 FAX0422-71-4512
大阪:〒665 宝塚市栄町2-10-14　新興産ビル2FD号 TEL0797-81-1167 FAX0797-81-1168

上記吸音材の貸し出しもします。詳しくは下記へ
